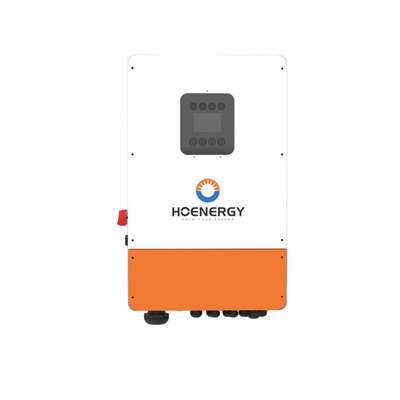

Model No. | iINV-HB1-US8.0L | |
Input(PV) | ||
Max.Power(KW) | 12 | |
Max.DC Voltage(V) | 500 | |
MPPT Voltage range(V) | 120~500 | |
Max.Input Current of Single MPPT(A) | 12 | |
MPPT Tracker/strings | 4/1 | |
AC Output | ||
Rated Output Power(KVA) | 8 | |
Max.Power Current(A) | 38.3 | |
AC Output Voltage(V) | 120/240(split phase),208(2/3 phase),230(single phase) | |
Frequency(Hz) | 50/60 | |
Power Factor | 0.8lagging-0.8leading | |
THDi | <3% | |
AC Output Topology | split phase,2/3 phase,single phase | |
Battery | ||
Battery Voltage Range(V) | 40~58 | |
Max.Charging Voltage(V) | 58 | |
Max Charge/discharge current(A) | 190/190 | |
Battery Type | Lithium/Lead-acid | |
Communication interface | CAN/RS485 | |
EPS Output | ||
Rated Power(KVA) | 8 | |
Rated output voltage(V) | 120/240(split phase),208(2/3 phase),230(single phase) | |
Rated output current(A) | 38.3 | |
Rated frequency(Hz) | 50/60 | |
Automatic switchover time(ms) | <20 | |
THDu | <2% | |
Overload capacity | 125%,60S/150%,1S | |
General data | ||
Max.effciency | ≥98.2% | |
North american effciency | ≥97.2% | |
Protection class | IP65/NEMA 3R | |
Noise emission(dB) | <29 | |
Operation temperature | -25ºC~60ºC | |
Cooling | Natural | |
Relative humiduty | 0~95%(non-condensing) | |
Altitude | 2000m | |
Dimensions W*D*H(mm) | 430*220*710 | |
Weight(kg) | 41 | |
Isolation transformer | No | |
Self-consumption(W) | <3 | |
Display and communication | ||
Display | LCD,touch screen | |
Interfance:RS485/Wifi/4G/CAN/DRM | Yes | |
Safety standard | UL1741SA all options,UL1699B,CSA 22.2 | |
EMC | FCC Part 15,Class B | |
On-Grid | IEEE1547,IEEE2030.5,Hawaii Rule 14H,Rule 21 Phase I,II,III,NRS | |
Weight (kg) | 33.6 | |
Size (mm) | 422W×699.3H×279D | |
Protection Degree | IP65 | |
Installation Style | Wall-mounted | |
Warranty | 5 years | |
Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||
FOB | |||||
CFR(C&F) | 30% T/T in advance, paid the balance against copy of B/L | ||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
Delivery Time | 7~10days after receiving payment for one container | ||||
