Home /Products/Off Grid Solar Inverter MPPT/Solar Power System Home GROWATT SPF 3500 ES Inverter Grid Tie Inverter Inverters With Bms

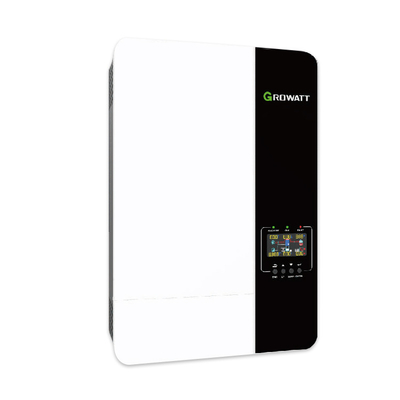

Solar Power System Home GROWATT SPF 3500 ES Inverter Grid Tie Inverter Inverters With Bms

2 pieces
MOQ
Solar Power System Home GROWATT SPF 3500 ES Inverter Grid Tie Inverter Inverters With Bms
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: SPF 3000-5000ES
Input Voltage: 450VDC
Output Voltage: 230VAC
Output Current: 80A
Output Frequency: 50/60(HZ)
Output Type: Single
Size: 380*485*100mm
Type: DC/AC Inverters
Inverter Efficiency: 98%
Certificate: CE/TUV
Warranty: 10 Years
Weight: 11.5Kg
Product Name: Growatt Off Grid Inverter
Battery Type: Lead Acid \ Lithium \ Gel
Protection: IP65
MPPT Voltage Range: 120V-430V
Communication: WIFI / RS485
Application: Solar Power System Home
Rated Power: 3000W/3500W/5000W
Output Waveform: Prue Sine Wave
Efficiency: 99.9% Max
Basic Infomation
Certification: CE/TUV
Model Number: SPF 3000-5000ES
Payment & Shipping Terms
Supply Ability: 150 Piece/Pieces per Day
Product Description
DATASHEET
SPF3500ES
SPF5000ES
Battery Voltage
48VDC
Type of Battery
Lithium Battery/Lead acid battery
Rated Power
3500VA/3500W
5000VA/5000W
Parallel Capability
Yes, up to 6 units
Output Voltage(Battery Mode)
230VAC ± 5% @ 50/60HZ
Surge Power
7000VA
10000VA
Conversion Efficiency
93%
Swithing Time
10ms Normal, Maximum 20ms
Maximum Photovoltaic Array Power
4500W
6000W
MPPT operating Voltage Range
120VDC-430VDC
Maximum Open-circuit Voltage of Photovoltaic Array
450VDC
Number of independent MPPTs/Number of MPPT Strings per channel
1/1
Maximum photovoltaic charging current
80A
100A
Charging current
60A
80A
Input Rated Voltage
230VAC
Input Voltage
170-280VAC(for personal computers)；90-280VAC（ for household load)
Input frequency range
50/60 HZ(adaptive)
