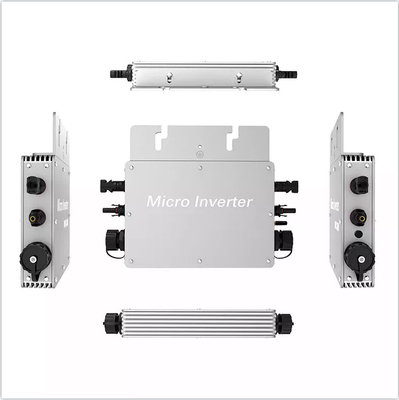

Hybrid Solar System Solar micro inverters On Gird 600W DC to AC for Solar Panel MPPT IP65 Waterproof Outdoor Install with 2m AC Cable

1.0 piece
MOQ
Hybrid Solar System Solar micro inverters On Gird 600W DC to AC for Solar Panel MPPT IP65 Waterproof Outdoor Install with 2m AC Cable
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: WVC600
Input Voltage: 20-50mc39v
Output Voltage: 110-220v, AC240/220/200/120/115/110/100V
Output Current: 5A/2.6A/5.9A/3.05A
Output Frequency: 50Hz/60Hz
Output Type: Single, DUAL
Size: 342*240*100mm., 342*240*100mm.
Type: DC/AC Inverters
Inverter Efficiency: 92.5%
Certificate: CE/ETL/CEC/INMETRO
Warranty: 2 Years, 2 Years
Weight: 2.4KG, 2.4KG
Solar Panel Power: 600W/700W
Solar Panel Voltage: Vmp16-21V; Voc20-24V
MPPT Voltage Range: 16V - 25V
MOQ: 1pcs
Application: Hybrid Solar System
MPPT Efficiency: 99.9%
Basic Infomation
Certification: CE/ETL/CEC/INMETRO
Model Number: WVC600
Payment & Shipping Terms
Supply Ability: 1000 Piece/Pieces per Week
Product Description

Solar micro inverters On Gird 600W DC to AC for Solar Panel MPPT IP65 Waterproof Outdoor Install with 2m AC Cable

WVC-600W-Life (Mobile APP) Updated type,Wifi Mode, The Mobile app is obtained through QR code scanning, and the monitoring
interface is automatically linked.no need WIFI Modem for remote monitoring
( NEW Version can be monitored via WIFI and Bluetooth )
Package Include:
1 Piece MPPT Waterproof Inverter
2, comes with one piece 1 meter AC power cable
3. Fixing use Screws and Nuts 1 Set
1 Piece User Manual (English)

The fifth generation WVC series communication products of us, adopt waterproof flow line design, which can provide better heat dissipation function for the equipment. The built-in maximum power point tracking engine (MPPT) can better capture changes in lighting, and it can work even in rainy weather. It can maximize the capture and collection of sunlight. The inverter is compatible with a variety of conventional solar panels with an open circuit voltage of 22~60V, and the panel can exert its best performance through technical means.

The power output mode of us Micro-Inverter is reverse transmission technology, which supplies power to the load first, and then uploads the excess power to the local power grid. Its conversion efficiency is as high as 95%. The product has multiple national invention and appearance patents , And has CE, CEC, INMETOR and other regional and national product certification.

Features:
1.Maximum power point tracking
2.Adaptive voltage/frequency
3.App monitoring system
4.Teverse power transmission
5.Internal high precision meter
6.Forward full-bridge topology
7.I/O,fully isolated
8.Voltage mode microgrid
9.No installation,no maintenance
10.Multiple parallel stacks
11.5G lot platform management


Product Description

Grid-connected system

The biggest feature of the photovoltaic grid-connected system is that the DC power generated by the photovoltaic array is
converted into AC power that meets the requirements of the commercial power grid through the grid-connected inverter, and then directly connected to the commercial power grid. The power generated by the panel array in the grid-connected system is preferentially supplied to the AC At the load side, excess power is fed back to the grid. On rainy days or nights, when the photovoltaic array does not generate electrical energy or the generated electrical energy cannot meet the load demand, it is powered by the grid.

Because the electric energy is directly input into the power grid, the configuration of the storage battery is eliminated, the
process of storage and release of the storage battery is eliminated, and the power generated by the PV square array can be fully utilized to reduce the energy loss and reduce the cost of the system. However, a dedicated grid-connected inverter is required in the system to ensure that the output power meets the requirements of the grid power for voltage, frequency and other indicators.Because of the inverter efficiency, there will still be some energy loss. Such systems are usually able to use the mains and solar photovoltaic arrays in parallel as the source of local AC loads. Reduce the load power shortage rate of the entire system. And the grid-connected PV system can play a peak-shaving effect on the public power grid.
In response to the characteristics of the grid-connected system, we has developed the first generation of micro-grid inverters as early as 2008, specifically for the recycling of electrical energy of various profit and loss. Provides a preliminary route for our product development and design direction, and overcomes a series of technical problems on the grid-connected system. Until now the fifth generation WVC series R3 version of the inverter.

Installation of Micro Inverter

Step1Installation for fixed the inverter on the PV holder with the screws attached is as following:

Step2Connect the two DC terminal of the PV to the inverter,positive to positive, negative to negative. Show below:

Step3Open the waterproof cap on AC output side of the micro inverter, then plug to AC power line. Show below

Step4Plug the AC output line to main AC cable;

Step5Repeat the first step to the third step to complete the installation of micro inverters;

Step6Finally, please connect the AC main cable to the utility grid to run renewable energy and saving $$$

.
Certifications
Company Profile
Feedback:

Please feel free to contact us if there is any problems.We will try our best sloving it. If You Are Satisfied With Our Product,Kindly Leave Full-stars and Good Feedback For us. Your Feedback will Encourage us DO it Better In The Further . Thanks!

FAQ
Q1: Do you accept OEM business?
A1:We accept OEM with your autherization.
Q2:Which market do you already sell?
A2:We already ship to Europe, Middle East, South America, Asia, Africa etc

Q3:What is the warranty for this inverter?
A3:, All products are at least 2year warranty.

Q4: What is the shipping way?
A4: DHL,UPS,TNT,EMS,FedEx, Ship by sea.

Q5:What is the payment method?
A5:We normally require a T/T advance payment. 30% deposit and 70% before shipping.

Q6: What is the standard of package?
A6: Export standard package or special package according to customer requirement

Q7: What kind of product quality your factory offer?
A7:We offer most competitive prices with best quality

Q8:How can I make sure it's a secure transaction ?
A8: Alibaba can protect buyers' interest, all of our transation will go through alibaba platform.As you do the payment, the money
will go directly to Alibaba bank account.After we send your the items and you comfirm the detailed information, Alibaba will
release us the money.

Q9:How to become your agent?
A9:Contact us through Alibaba, we will give you the best price and look forward to your greetings


Shipping:

1.We guarantee to ship goods out within 24-72 hour after payment confirmation except holiday.
2. Import duties, taxes and charges are not included in the item price or shipping charges.These charges are Buyer’s
responsibility.
3.If you didn't receive the item after 55 days, please feel free to contact us.We will make all our effort to resolve the problem.
4.We are not responsible for delays caused by the customs,Import duties,taxes or other customscharges.
5.If you need more fast delivery, contact us to use Fedex, DHL, TNT,UPS ect and pay the extra freight cost.
6.Remote area addition fee(UPS & FedEx & DHL)A Remote Area is defined as a post code or in the absence of post code, a suburb/town name that is difficult to serve. A delivery to one of the following post codes and towns would attract a Remote Area surcharge.
7. 100% QC before shipment.
