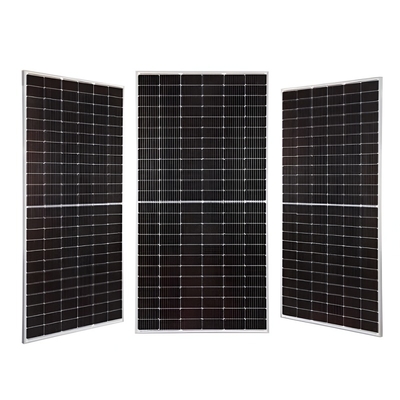

Home /Products/Solar Powered Panels/solar photovoltaic solar obtaining solar panels installed 530W 535W 540W 545W 580W solar panel for home solar system 210mmx210mm

solar photovoltaic solar obtaining solar panels installed 530W 535W 540W 545W 580W solar panel for home solar system 210mmx210mm

100 watts
MOQ
solar photovoltaic solar obtaining solar panels installed 530W 535W 540W 545W 580W solar panel for home solar system 210mmx210mm
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: FZ18M
Cell Size: 210mmx210mm
Type: PERC, Half Cell, Bifacial, Double-glass, All Black, HJT
Panel Dimensions: 2384X1303X35mm
Panel Efficiency: 21.6%
Certificate: TUV/CE/IEC61215/IEC61730/ISO, CE, EMC, ETL,
Warranty: 25 Years Linear Power Output Warranty
Glass: 3.2 Mm , High Transmission, AR Coated Tempered Glasses
Frame: Anodized Aluminium Alloy
Basic Infomation
Certification: TUV/CE/IEC61215/IEC61730/ISO, CE, EMC, ETL
Model Number: FZ18M
Payment & Shipping Terms
Packaging Details: 2pcs per carton Wooden Box or Carton on Pallets
Supply Ability: 10000000 Watt/Watts per Week
Product Description
Product Description

Vertex(Backsheet)
DE18M(II)
DE19
DE20
Power range
485W~510W
530W-555W
585W-605W
Power Tolerance-PMAX (W)
0 ~ +5W
Maximum Power Voltage-VMPP (V)
42.2~43.2V
30.8~31.8V
33.8~34.6V
Maximum Power Current-IMPP (A)
11.49~11.81A
17.21~17.45A
17.31~17.49A
Open Circuit Voltage-VOC (V)
51.1~52.1V
37.1~38.1V
40.9~41.7V
Short Circuit Current-ISC (A)
12.07~12.42A
18.31~18.56A
18.37~18.57A
Module Efficiency (%)
20.1~21.2
20.3~21.2
20.7~21.4
Vertex(Bifacial)
DEG18MC.20(II)
DEG19C.20
DEG20C.20
Power range
480~505W
525W~550W
580W~600W
Power Tolerance-PMAX (W)
0 ~ +5W
Maximum Power Voltage-VMPP (V)
42.2~43.7V
30.8~31.8V
33.8~34.6V
Maximum Power Current-IMPP (A)
11.38~11.56A
17.04~17.29A
17.16~17.34A
Open Circuit Voltage-VOC (V)
50.7~51.7V
37.1~38.1V
40.9~41.7V
Short Circuit Current-ISC (A)
11.97~12.17A
18.14~18.39A
18.21~18.42A
Module Efficiency (%)
20.1~21.2
20.1~21.0
20.5~21.2
Vertex S
DE09
DE09.05
DE09.08(Black frame)
Power range
390W~405W
380W~395W
390~405W
Power Tolerance-PMAX (W)
0 ~ +5W
Maximum Power Voltage-VMPP (V)
33.8~34.4V
33.4~34.0V
33.8~34.4V
Maximum Power Current-IMPP (A)
11.54~11.77A
11.38~11.62A
11.54~11.77A
Open Circuit Voltage-VOC (V)
40.8~41.4V
40.4~41.0V
40.8~41.4V
Short Circuit Current-ISC (A)
12.14~12.34A
12.00~12.21A
12.14~12.34A
Module Efficiency (%)
20.3~21.1
19.8~20.5
20.3~21.1
